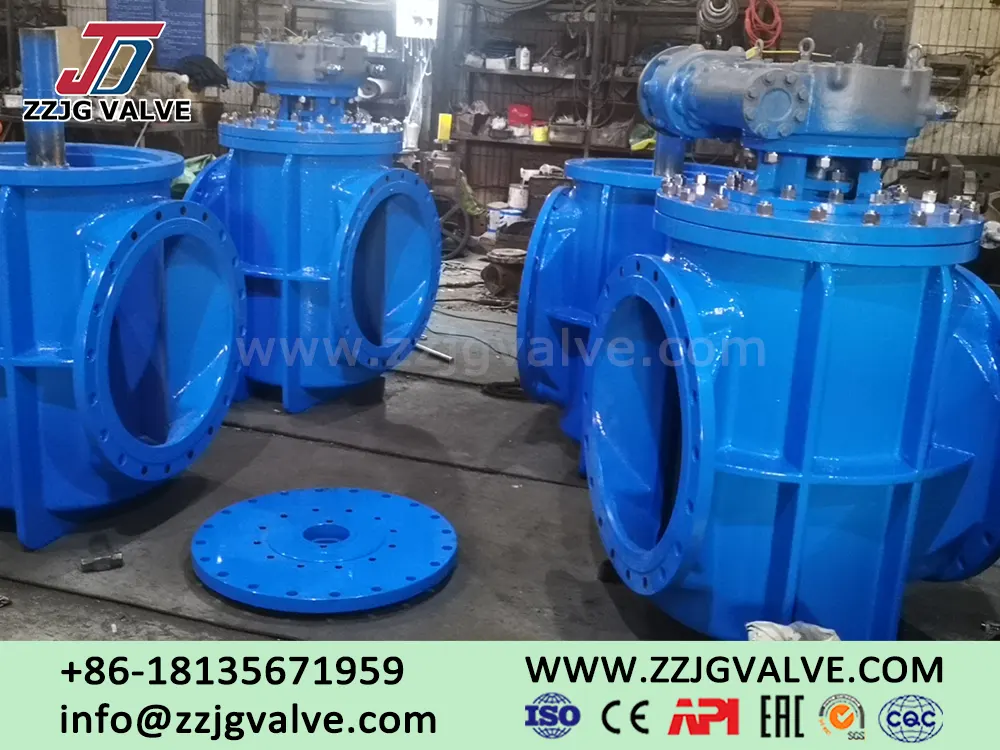

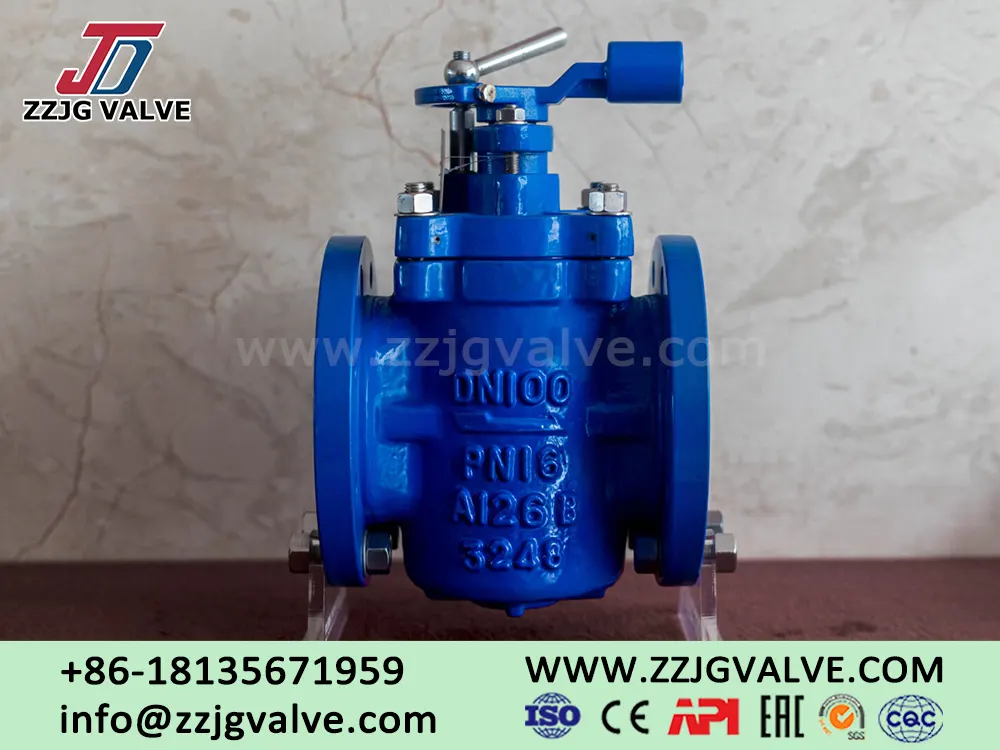

Eccentric Plug Valve Manufactured By ZZJG VALVE

Eccentric plug valve manufactured by ZZJG VALVE. It's combines robust construction with innovative eccentric design, so deliver precise flow regulation and reliable shutoff. Suitable for harsh industrial environments, it is built to withstand extreme pressures and temperatures, reflecting ZZJG VALVE’s commitment to engineering excellence since 1981.

Ⅰ.What is the Eccentric Plug Valve?

Eccentric Plug Valve achieves the opening and closing of the valve through the eccentric motion of the plug. The core feature of it is: the rotation axis of the plug body is offset from the geometric center by a predetermined distance. The plug disengage valve seat quickly during the opening of the plug valve, and gradually tighten the final stage of during the closure of the plug valve.

Ⅱ.Strcuture Features

Eccentric design: there is a eccentric distance between valve sealing surface and plug rotation shaft. When clsoing, the plug and the valve seat became tighter and tighter as it turned to ensure the tightness of the seal. When opening, the plug and seat separate quickly, reduce the friction and extend the service life of the valve.

Overall rubber-coated plug: the plug is made of ductile iron framework + high-performance rubber. This design increase the resilience of the seal and prevent the rubber from peeling and erosion corrosion problems.

Special corrosion-resistant valve seat: according to different working condition, we can choose the pure nickel, stainless steel or other special materials as the seat material. By new surface treatment technology to withstand the erosion and corrosion of various media.

Rectangular straight-through flow channel: straight-through flow channel design make the lose of water head very low. The flow passage of the seat is rectangular, this help to achieve linear regulation of flow rate. And the large rectangular size and flow channel self-cleaning design make it suitable for sewage environment containing solid impurities.

Integrated valve shaft: The valve shaft and the plug are integrated casting and which enhances strength and the stability of torque transmission, at the same time, it eliminate the risk of failure of the traditional plug valve shaft pin.

Ⅲ.Performance Parameters

Nominal diameter: DN50mm to DN900mm.

Nominal pressure: PN1.0MPa and PN1.6MPa.

Operating temperature: 0℃ to 120℃.

Ⅳ.Application

Compared with traditional plug valve, the eccentric plug valve has the advantage of low operating torque, good sealing performance, low wear, and long service life. At the same time, its lightweight and compact structure and corrosion-resistant surface treatment make it more suitable for working in harsh environments.

The eccentric plug valve is widely used in urban sewage, industrial sewage, slurry and clean water environments, and can be used as a blocking or regulating device.

If you are looking for a reliable sealing, easy-to-operate and long-lasting valve solution for wastewater, slurry, clean water, etc., the eccentric plug valve is undoubtedly the ideal choice.

We can provide customized product solutions and technical support based on your specific requirements such as nominal diameter, pressure rating, and driving method.

Please feel free to call or leave a message for consultation at any time. Let us match you with cost-effective valve products to help your system operate stably and efficiently!
