The “sliding door” on the pipeline: A Complete Understanding of the Working Principle of the sliding type line blind valve

Industrial pipeline systems are equipped with various specialized valves. The function of most valves is to regulate the flow rate of the medium conveyed in the pipeline. There is a special type of valve specifically responsible for the safety isolation of pipelines. This device is a sliding type line blind valve, which is also known as a track-type blind valve. Everyone can refer to the sliding doors in daily life to easily understand their working mode. This valve can control the on-off state of industrial pipelines with a simple sliding action.

I. What is a sliding type line blind valve?

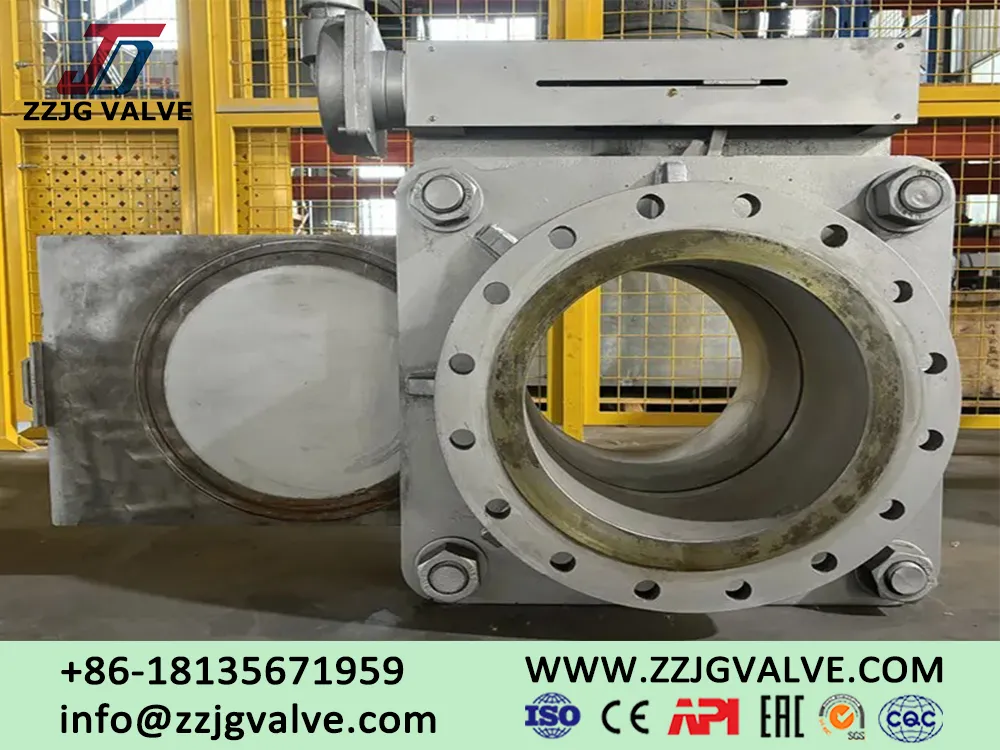

The sliding type line blind valve is a dedicated isolation device for industrial pipelines. The valve plate inside the equipment can slide straight along the built-in track. The valve plate can switch the open and closed states of the pipeline by sliding. This valve is different from ordinary flow control valves. It has only one core function. When pipelines undergo maintenance, daily inspections and emergency isolation operations, this valve can build a stable physical protective barrier for the pipelines. It can completely prevent medium leakage and comprehensively ensure the overall safety of pipeline operation and work.

II. Working Principle: Manage pipelines like sliding doors

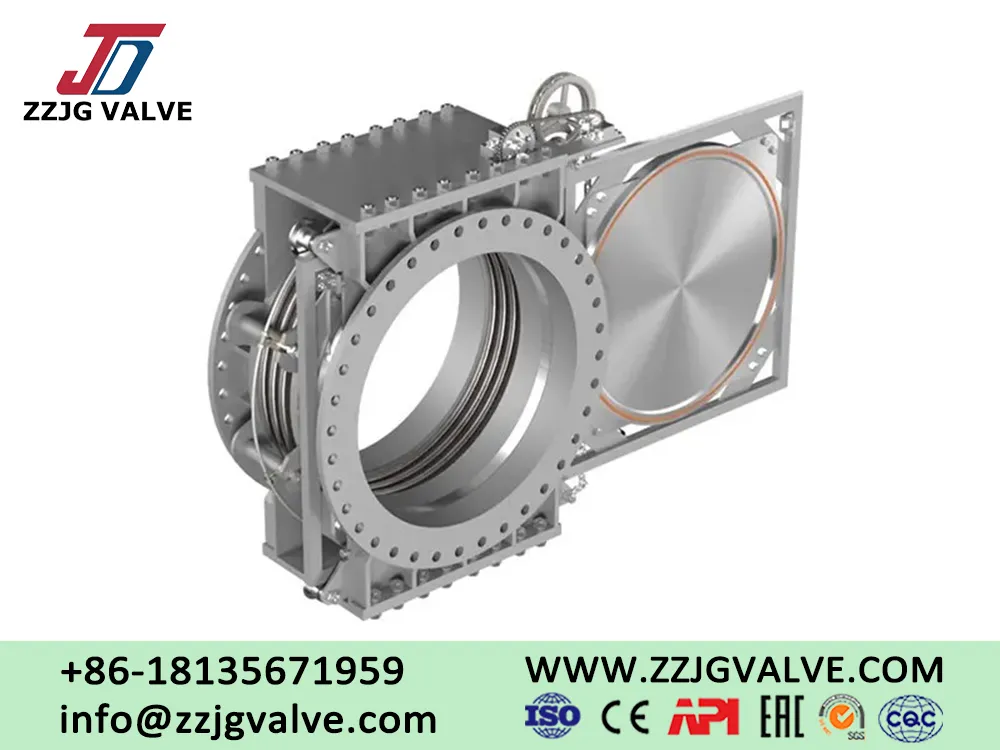

The core component of the sliding pipe blind valve is the special valve plate. This valve plate is divided into two independent functional areas. The two areas are respectively responsible for different work contents.

The first area is the circulation hole. The inner diameter of this hole is exactly the same as that of the matching pipe. After the flow hole is aligned with the pipe interface, the medium inside the pipe can pass through smoothly without any obstruction.

The second area is the solid sealing plate. This board surface has no holes at all. After the solid sealing plate covers the cross-section of the pipe, it can completely block the pipe and cut off the medium transportation channel.

The valve plate will be installed on the precise track inside the valve body. The drive structure matched with the equipment can drive the valve plate to move horizontally. The drive structure can flexibly switch the working state of the pipeline by moving the valve plate.

Pipe open state: The drive structure will slide the valve plate to one side position. The flow holes of the valve plate will be precisely aligned with the pipeline. The entire pipeline can remain unobstructed and the medium can be transported normally.

Pipe isolation state: The drive structure will slide the valve plate to the other side position. The solid sealing plate of the valve will completely cover the cross-section of the pipeline, forming a tight physical isolation effect.

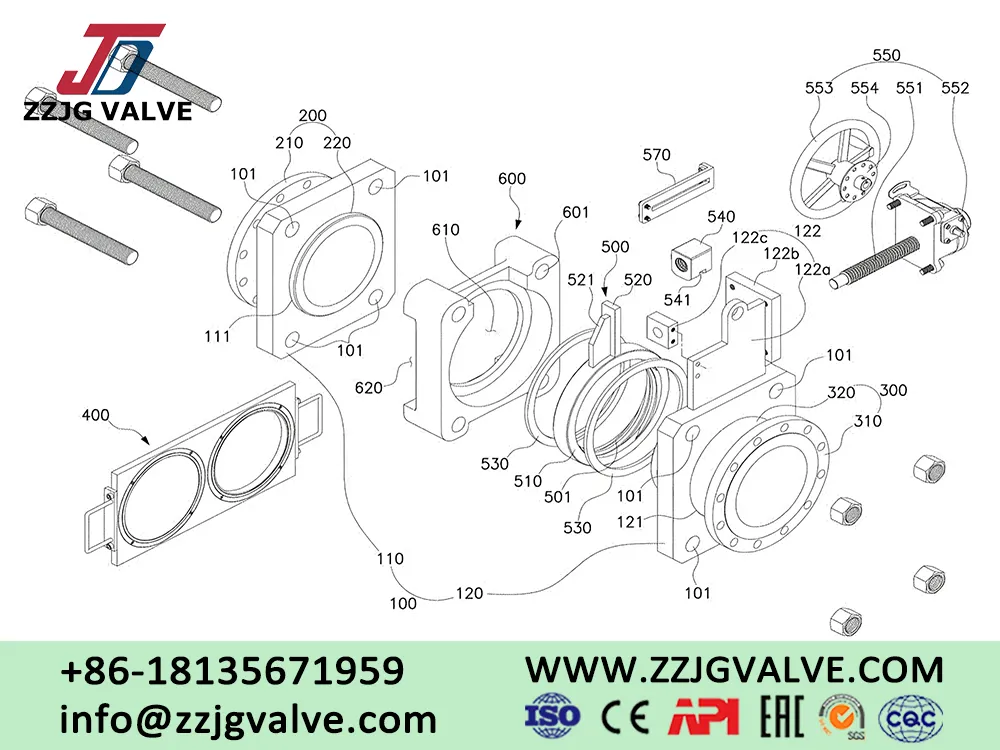

III. Core Structure: Five key Components

1.Valve body

The valve body is the external casing of the entire equipment. A precise sliding track is set inside the valve body. The valve body is firmly fixed to the industrial pipeline through the flange structure. The valve body can provide stable support for the entire valve.

2. Valve plate

The valve plate is the core moving part of the equipment. One end of the valve plate is provided with a flow hole, and the other end is a solid sealing plate surface. The main function of the valve plate is to complete the opening and closing switching of the pipeline.

3. Sealing components

The equipment will be equipped with two types of sealing parts according to different working environments. Soft seals made of polytetrafluoroethylene or rubber are suitable for normal temperature working scenarios below 200 degrees Celsius. Metal sealing parts are suitable for high-temperature working scenarios. These sealing parts can ensure that there will be no problem of medium leakage after the pipeline is isolated.

4. Drive mechanism

There are fur commonly used types of drive mechanisms for equipment, namely manual, electric, pneumatic and hydraulic. The drive mechanism can output stable power to drive the valve plate to slide horizontally, successfully completing the on-off operation of the pipeline.

IV. Standard Operating Procedure (Electric Model)

The first step is for the workers to inspect the operating conditions of the pipeline site and eliminate potential safety hazards on site.

The second step is for the operator to start the equipment motor and initiate the pipeline status switching operation.

The third step is that the motor drives the valve plate to slide horizontally until it reaches the standard working position.

The fourth step is for the operators to lock the sealing structure of the equipment to ensure that the pipeline is tightly sealed without any gaps.

The fifth step is for the operators to inspect the overall condition of the equipment and confirm that the pipeline on-off switching work has been completed and is in place.

The entire switching operation can be completed in just a few seconds to tens of seconds. Its working efficiency far exceeds that of traditional bolt-type blind plates. Traditional blind plates require workers to disassemble and install flange bolts one by one. This kind of operation process is very cumbersome and will also waste a lot of time.

V. Six core Usage Advantages

1. Physical isolation, zero leakage

This valve physically blocks the pipeline by means of solid plates. The safety and stability of this isolation method are better than those of the sealing structure of ordinary control valves.

2. Full bore design, no pressure loss

The flow channel of the valve is kept consistent with the inner diameter of the pipe. When the medium passes through the valve, there is basically no pressure loss.

3. Simple operation and quick switching

The equipment adopts a push-pull sliding switch mode. The operators do not need to disassemble and assemble the flanges and bolts, which can directly simplify the operation steps.

4. Support frequent start-stop switching

This valve can be adapted to working scenarios that require repeated opening and closing. It has a very prominent advantage in the frequent start-up and shutdown operations of chemical equipment. 5. It can operate under pressure without the need to stop the machine for pressure relief

The operator can complete the switching operation under the condition that the pipeline is operating under pressure. The operators do not need to shut down the entire system or release the pipeline pressure in advance.

VI. Equipment Limitations and Precautions for Use

First, the valve only has two working states: fully open and fully closed. Valves cannot regulate the flow rate of the medium conveyed inside the pipeline.

Second, the overall length of the valve body is relatively large. When the staff install the equipment, they need to leave sufficient space in advance to ensure that the valve plate can slide normally.

Thirdly, a small amount of metal debris will be produced during the sliding process of the valve plate. Before using this equipment in high-cleanliness pipeline scenarios, staff members need to conduct a professional applicability assessment in advance.

Fourth, the production cost of this type of valve is higher. Its selling price is higher than that of ordinary gate valves and ball valves.

VII. Typical Application Scenarios

1. Petrochemical industry

The equipment is mainly used to isolate the pipelines for transporting toxic and flammable media, effectively avoiding various industrial safety risks.

2. Metallurgical industry

The equipment is widely used to isolate pipelines of toxic gases such as blast furnace gas, effectively ensuring the safety of factory production.

3. Natural gas transmission industry

The equipment is used to separate long-distance natural gas transmission pipelines into sections, facilitating the staff's segmented maintenance and control of the pipelines.

4. Power industry

The equipment can be used for the maintenance and isolation of high-temperature steam and flue gas desulfurization pipelines, and is adaptable to various high-temperature special working conditions.
