X13W-10 Threaded Plug Valve for Oil, Water, Hot Mix Asphalt & Tin Smelting

I. Product Overview

The X13W-10 Threaded Plug Valve is a commonly used valve for controlling the opening and closing of pipelines. This product has a simple structure and stable operation, and is suitable for medium and low pressure conditions. The valve is made of cast iron, cast steel or stainless steel and has good strength and durability, which can meet various industrial usage requirements.

This valve adopts a rotary opening and closing method, and achieves on-off control by rotating the plug. The opening and closing process is clear, the operation is convenient, and it is suitable for working conditions that require frequent opening and closing.

II. Structural Characteristics

The X13W-10 threaded plug valve is mainly composed of a plug. There is a through hole inside the plug. By rotating 90 degrees, the valve can be opened or closed. The flow channel is of a straight-through design, and the resistance when the medium passes through is relatively small, which is beneficial for improving system efficiency. The threaded plug valve has a simple structure with no complex components inside and is less prone to failure. The maintenance requirements during use are low, making it suitable for long-term operation.

III. Connection Method

Threaded plug valve adopts an internal thread connection method. The installation is simple and does not require welding. It is suitable for medium-sized pipe systems. Installation and replacement at the site are convenient. The threaded connection also facilitates disassembly and maintenance, which is beneficial for reducing maintenance costs.

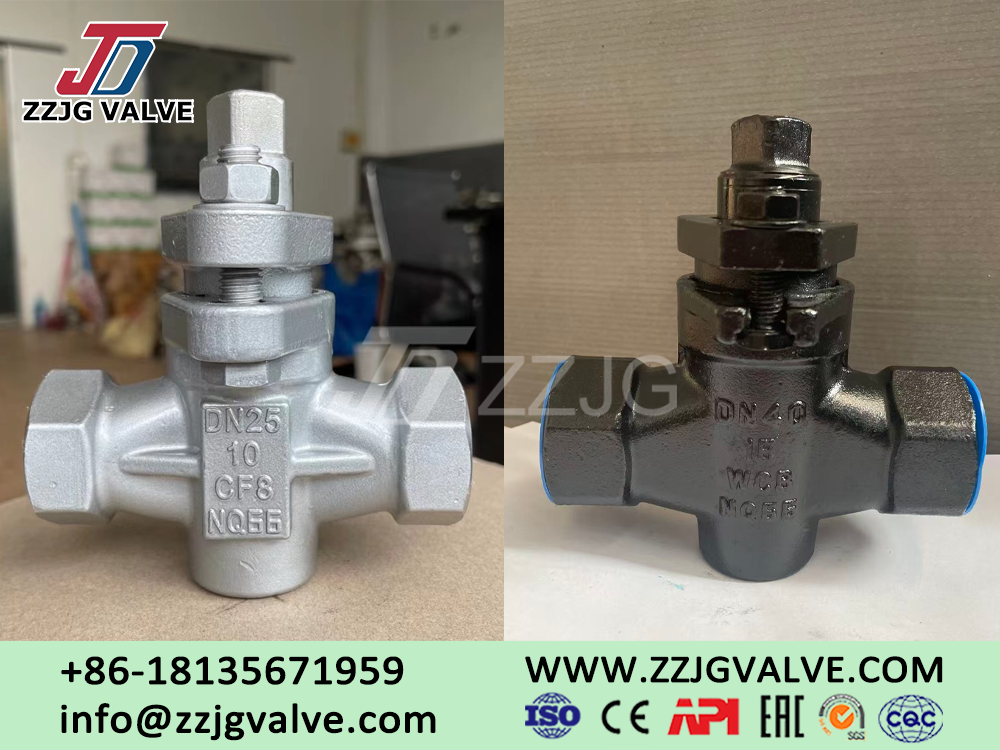

IV. Material Specifications

The X13W-10 offers two common materials:

1. Cast Iron: Suitable for water and oil systems at normal temperatures and under normal pressure, with lower cost.

2. Cast Steel: Higher in strength and better in temperature resistance, suitable for environments with higher temperatures or more complex working conditions. Choosing the appropriate material based on different working conditions can enhance the service life and safety of the valve.

V. Applicable Media

This Thread Connection Plug Valve is suitable for a variety of industrial media:

- Water: Industrial water supply, circulating water systems

- Oil: Lubricating oil, fuel oil, etc.

- Hot-mixed asphalt: Media with certain temperature and viscosity

In asphalt conditions, the threaded plug valve needs to have temperature resistance and avoid medium deposition. This product has a simple flow path and is not prone to blockage, making it suitable for such applications.

VI. Application in Tin Smelting Operations

In the tin smelting industry, the medium may have a high temperature and contain impurities.

The internal structure of the X13W-10 threaded plug valve is simple, and it is not prone to material accumulation. It is suitable for conveying media with particles.

Screw Plug Valve is flexible in opening and closing and can be used as an auxiliary pipeline or in general control positions. In such operations, a stable cutting function can be achieved.

VII. Product Advantages

· Simple structure, high reliability

· Quick opening and closing, easy operation

· Stable sealing performance

· Low flow resistance, smooth passage

· Quick installation, simple maintenance

· Wide application range

VIII. Application Fields

The X13W-10 threaded plug valve is widely used in:

· Metallurgical industry (tin smelting)

· Petroleum and chemical industry

· Asphalt production and transportation systems

· Industrial water supply and drainage systems

· General industrial piping systems

IX. Selection Suggestions

When selecting, it is necessary to make the choice based on the medium type, temperature, and pressure. For high-temperature or complex working conditions, it is recommended to choose cast steel material. During installation, ensure that the threaded seal is in good condition. It is suggested to regularly check the valve status during use to ensure long-term stable operation.

If you want to learn more or have inquriy, feel free to contact ZZJG VALVE.
