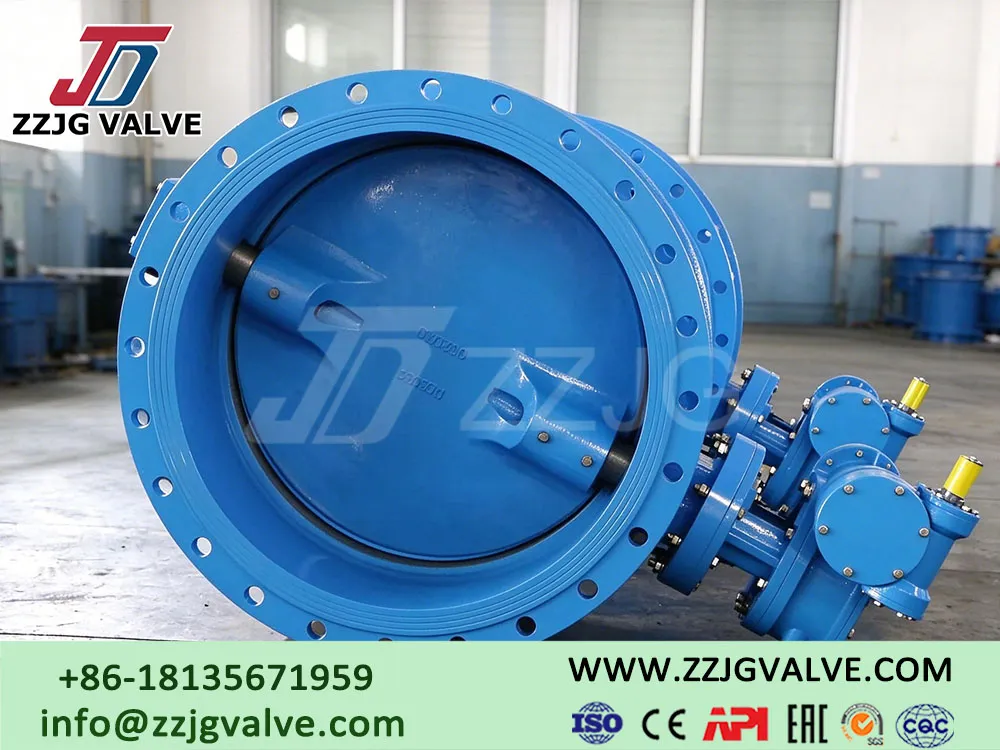

What Are the Advantages of a Double-Offset Soft-Seated Butterfly Valve? Why Is Ductile Iron Preferred for the Valve Body?

Double-offset soft-seated butterfly valves are commonly used in water supply, water treatment, HVAC systems, industrial cooling water, and various other piping applications. Unlike conventional concentric butterfly valves, the double-offset design reduces friction between the disc and the sealing surface during valve operation.

When the valve body is made of ductile iron, the valve offers good mechanical strength and reliable overall performance, making it suitable for many medium- and low-pressure pipeline systems. It also provides a cost-effective solution.

Double-Offset Design Minimizes Seal Wear

The stem and disc of a double-offset butterfly valve have two offset points. As soon as the valve begins to open, the disc moves away from the sealing surface. This design significantly reduces contact and friction between the disc and sealing surface during opening and closing, thereby minimizing seal wear and reducing operating torque. This makes the valve suitable for applications requiring frequent operation.

Soft-Seal Structure Ensures Effective Shut-Off

Soft seals use elastic sealing materials to provide tight shut-off. These valves are primarily used for conveying water or fluids containing limited amounts of impurities. Depending on the operating temperature and conveyed medium, different sealing materials can be selected. When choosing a valve, it is essential to match the sealing material to the actual operating conditions.

Why Choose Ductile Iron for the Valve Body?

Ductile iron is a widely used material for butterfly valve bodies due to its good strength and toughness. Compared with conventional gray cast iron, it offers better durability and impact resistance. Ductile iron can withstand external loads and stresses from the pipeline system.

In addition, ductile iron has good castability, making it suitable for manufacturing medium- to large-sized valve bodies. These characteristics make ductile iron well-suited for water supply and many industrial applications.

Balancing Performance and Procurement Cost

Water supply, sewage, and industrial cooling systems require reliable valve operation while also aiming to control costs. Ductile iron double-offset soft-seated butterfly valves can meet both performance and economic requirements.

High-cost alloy materials can increase procurement costs, while ductile iron offers lower material costs while providing sufficient strength for most standard pipeline applications.

Typical Application Scenarios

Ductile iron double-offset soft-seated butterfly valves are widely used in the following areas:

• Water supply pipelines
• Sewage treatment systems
• Industrial cooling water circulation
• HVAC systems
• Fire protection piping
• Industrial water lines

These applications require reliable shut-off, low operating torque, and long-term stable performance. The combination of a double-offset design and soft sealing can effectively meet these requirements under typical operating conditions.

However, if the pipeline carries corrosive media or operates at high temperatures, alternative materials for the valve body, disc, stem, and seals should be considered.

Key Considerations When Selecting These Valves

When purchasing ductile iron double-offset soft-seated butterfly valves, the following parameters should be properly evaluated:

• Valve size (nominal diameter) and pressure rating
• Type of conveyed medium and its corrosiveness
• Operating temperature
• Sealing material
• Materials of the valve body, disc, and stem
• Flange standards and dimensions
• Actuation method: manual, pneumatic, or electric
• Installation conditions

Selecting appropriate materials and valve design can help ensure reliable sealing, smooth operation, and extended service life.
