ASTM A890 4A Inverted Lubricated Plug Valve Features & Application

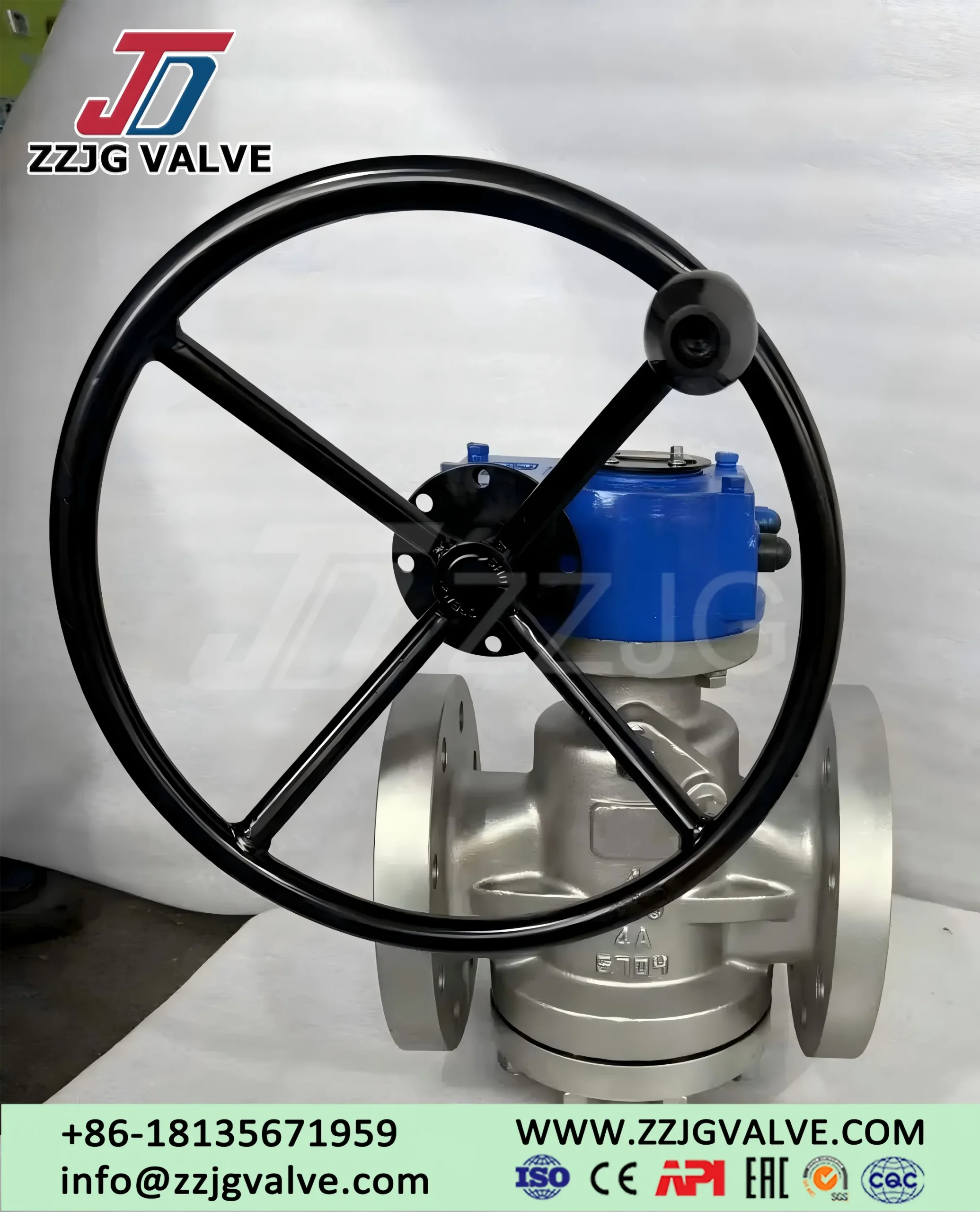

ASTM A890 4A Inverted Lubricated Plug Valve is a high-performance industrial plug valve with a valve body made of ASTM A890 4A super duplex stainless steel and an inverted pressure-balanced oil seal structure.

Designed and manufactured in strict accordance with industry standards such as API 599 and ASME B16.5, it is a fluid control valve upgraded for demanding operating conditions involving high pressure, strong corrosion, and high-frequency opening and closing.

The product combines the corrosion-resistant and high-strength advantages of 4A duplex stainless steel with the low pressure loss, high sealing, and easy opening and closing advantages of the inverted oil seal structure. It can achieve stable shut-off, connection, and reversal of pipeline media and is widely used in high-end industrial scenarios such as marine engineering, petrochemicals, environmental protection, and power generation.

1. Core Material: ASTM A890 4A Super Duplex Stainless Steel Characteristics

4A (ASTM A890 4A) Super Duplex Stainless Steel is a premium material specifically designed for high-end plug valves. ASTM A890 Grade 4A (UNS J92205) is a standard specification for cast duplex stainless steel. Often designated as CD3MN, it is the cast equivalent to the widely used wrought alloy Duplex 2205 (UNS S31803 / S32205).

It possesses a bidirectional metallographic structure of austenitic + ferritic, and its overall performance far surpasses that of ordinary 304 and 316 stainless steels. It provides core material assurance for the long-term stable operation of inverted lubricated plug valves. Specific characteristics are as follows:

・Superior Corrosion Resistance: Effectively resists corrosion from strong corrosive media such as chloride ions, seawater, acid, alkali, and salt solutions, sulfides, and oil and gas. It exhibits excellent resistance to pitting corrosion, crevice corrosion, and stress corrosion, making it suitable for harsh environments such as marine salt spray, chemical corrosion, and wastewater desulfurization. It prevents valve body rust, perforation, and media leakage.

・ High Mechanical Strength: Its tensile strength and yield strength are far higher than conventional austenitic stainless steel. The valve body has sufficient overall rigidity, strong resistance to impact, compression, and deformation, and can stably withstand medium- and high-pressure fluid impacts and pipeline pressures without valve body cracking or valve core deformation.

・Wide Temperature Range Stability: The material is suitable for a wide temperature range, is not prone to softening or deformation under high-temperature conditions, and has no risk of brittleness in low-temperature environments. It can withstand complex operating conditions with alternating high and low temperatures, maintaining stable structure and sealing performance throughout.

・Wear Resistance, Fatigue Resistance, and Long Service Life: The material has high hardness and good wear resistance. Combined with an oil-sealed lubrication structure, the valve core experiences extremely low frictional loss during long-term high-frequency opening and closing, exhibiting outstanding fatigue resistance. This significantly reduces the frequency of valve maintenance and replacement, effectively reducing equipment maintenance costs.

2. Core Technical Parameters

[Main Body Material] ASTM A890 4A Super Duplex Stainless Steel

[Structure] Inverted pressure-balanced type, lubricated seal

[Standards] API 599, ASTM A890, ASME B16.5, GB/T 12224

[Nominal Diameter] DN15-DN600 (Large diameters can be customized)

[Pressure Rating] Class 150LB-Class 2500LB, PN16-PN420

[Sealing Type] Metal hard seal + oil seal auxiliary seal, PTFE soft seal optional

[Drive Method] Manual, worm gear drive, pneumatic, electric

[Applicable Media] Seawater, brine, acid and alkali corrosive solutions, oil and gas, chemical media, high-temperature gases, industrial wastewater, etc. Applicable Temperature: -40℃～450℃

3. Main Application Scenarios

√ Marine Engineering: Offshore oil platforms, ship pipelines, seawater desalination, and seawater transportation systems, providing long-term resistance to seawater chloride ion corrosion and high-pressure media impact.

√ Petrochemical Industry: Oil and gas extraction, refining units, chemical reaction pipelines, sulfide and strong acid/alkali corrosive media transportation, and high-pressure media cutoff and reversing systems.

√ Environmental Water Treatment: Industrial desulfurization and denitrification, saline wastewater, and acid/alkali wastewater transportation and treatment equipment, suitable for long-term operation of corrosive wastewater.

√ Energy and Power: High-temperature, high-pressure, and corrosive media fluid control systems in thermal power, nuclear power, and new energy power plants.

√ Fine Chemicals: High-precision sealed conveying and control of corrosive raw materials and high-purity media in pharmaceuticals, coatings, and daily chemicals.
