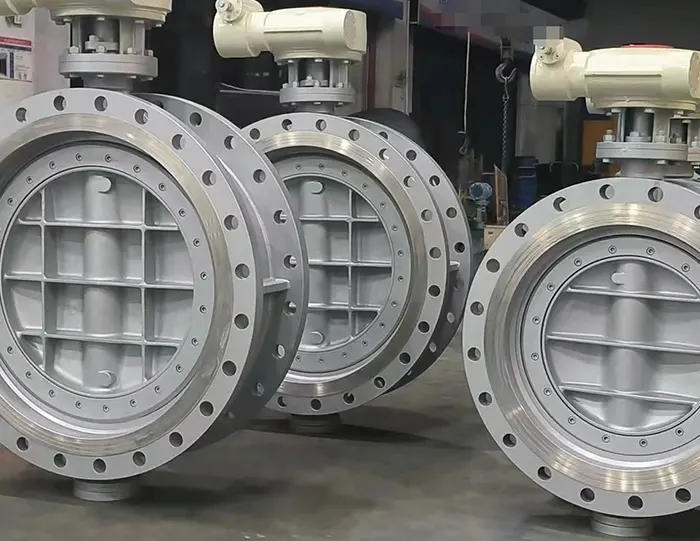

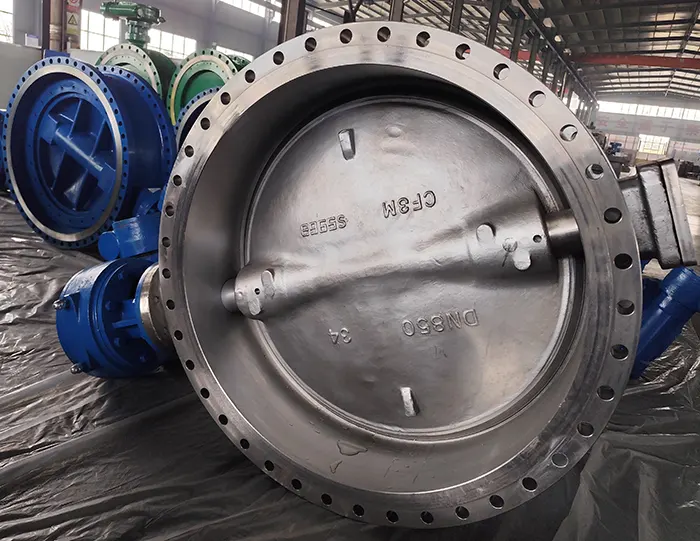

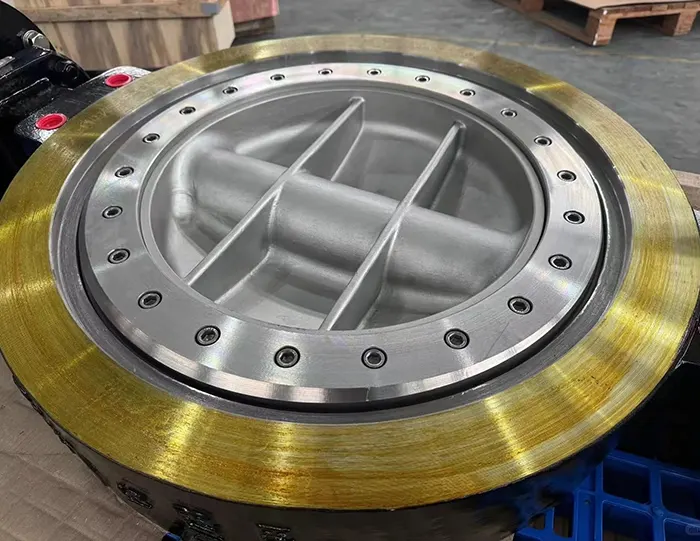

Triple Offset Multi-layer Graphite Metal Seal Butterfly Valve

Size RangeDN50~4200mm NPS2"~200"
PressurePN20~420Bar Class150~2500
Body MaterialDuctile Iron, WCB, LCB, CF8, CF8M, CF3, CF3M, A890 4A, etc.
OperationLever, Gear, Pneumatic, Electric, Hydraulic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB
More than 40 years professional valve manufacturer.
Products are exported to more than 72 countries.
Products are widely used in petroleum, chemical industry, metallurgy, electric power, water supply, coal gas, natural gas and other industries.
High reliability, excellent quality, fast service, online support

inquiry WhatsApp Email Download

Triple Offset Design:

Offset 1: The valve spindle is positioned behind the seat spindle

Offset 2: The center of the spindle is offset from the centerline of the pipeline and the valve

Offset 3: The seat cone shaft is offset from the centerline of the valve shaft

Main Features:

1. Our triple offset multi-layer graphite metal seal butterfly valve has advantages in the field of heating pipes.

2. High-pressure resistance +2500 LB.

3. High-temperature resistance +850℃.

4. Low-temperature resistance -270℃.

5. Bidirectional pressure seal & zero leakage.

6. Abrasion, erosion, and corrosion resistance.

7. Zero friction opening and closing with ultra-low torque.

8. Easy-to-replace and maintain seals and valve seats.

9. Long service life in the same pipeline.

10. Strict fire safety design.

Technical Parameters:
