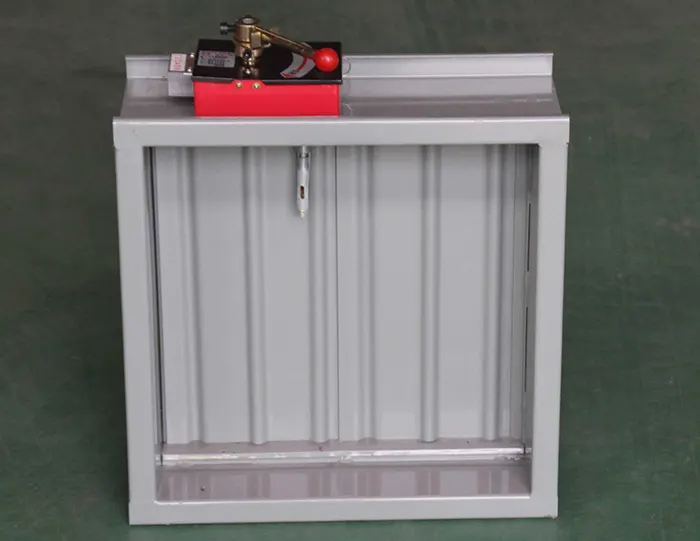

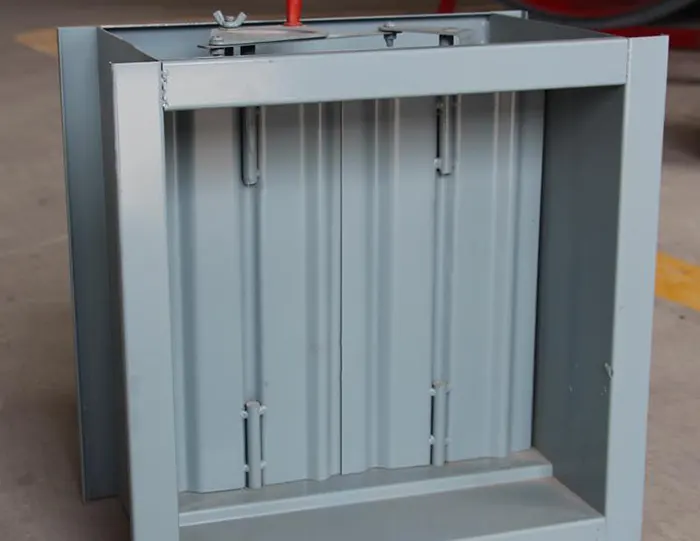

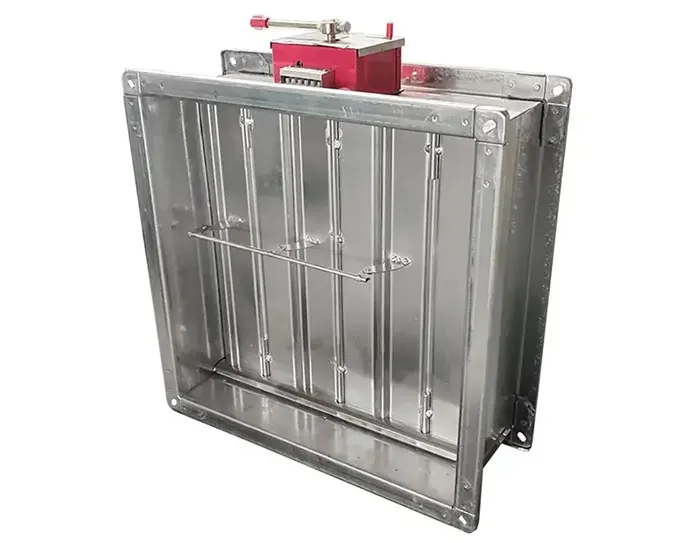

Smoke Fire Damper

Maximum size2660×2460 mm
Frame MaterialCarbon steel, 304 SS, 316L SS
Blades MaterialSteel, 304 SS, 316L SS
OperationElectric, Pneumatic

Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB
More than 40 years professional valve manufacturer.
Products are exported to more than 72 countries.
Products are widely used in petroleum, chemical industry, metallurgy, electric power, water supply, coal gas, natural gas and other industries.
High reliability, excellent quality, fast service, online support

inquiry WhatsApp Email Download

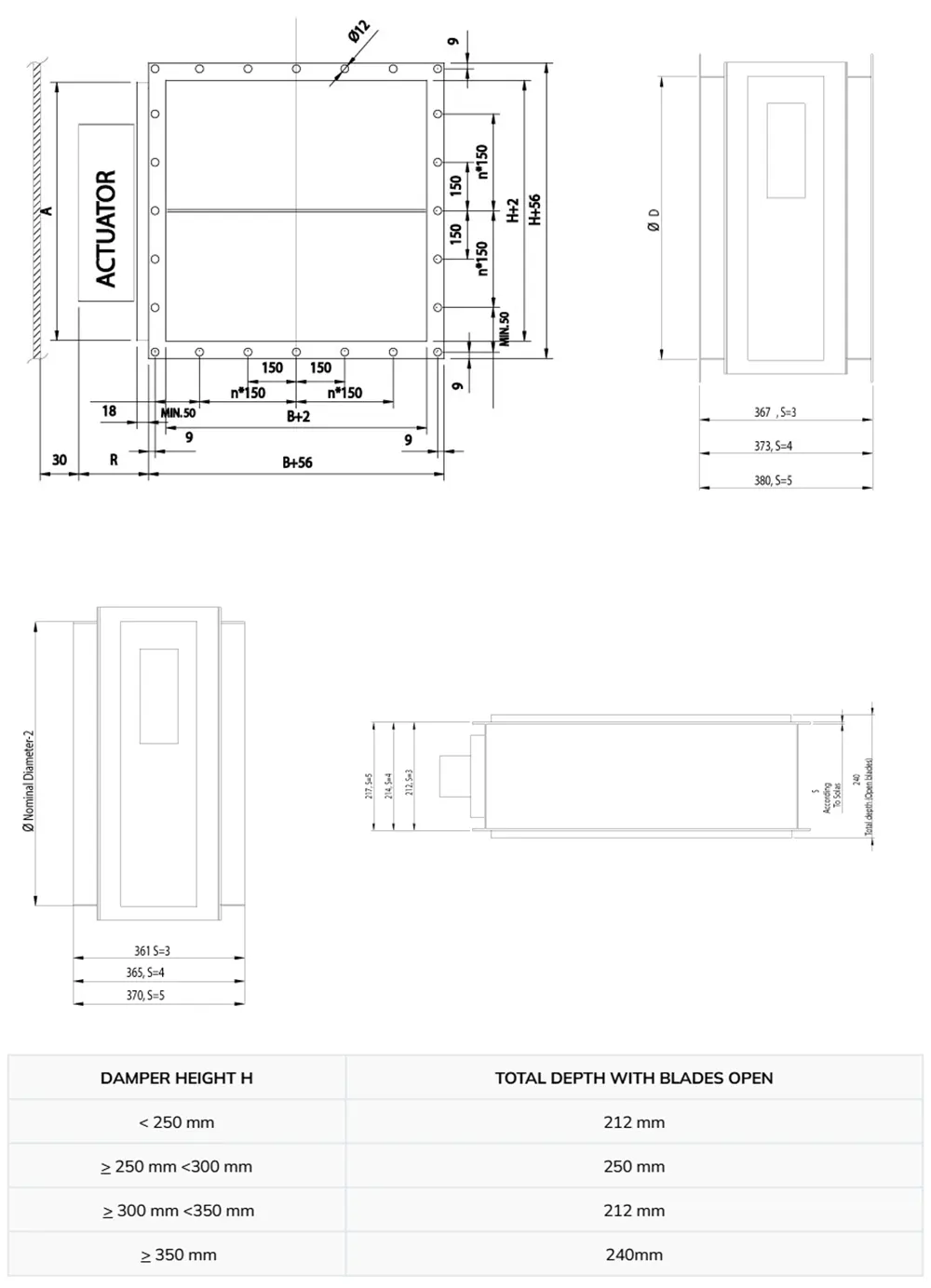

ZZJG fire dampers are manufactured according to international standards for both rectangular (width B 100-1300 mm and height H 100-1200 mm, 1 mm division) and circular ducts (Ø100-1250 mm). Modular constructions are available for bigger sizes.

Non-standard dimensions and flange drilling are available on request.

Standard flange width 27 mm. Flanges and drilling also available according to ISO 15138 standards.

Blades are made of two sheets, each of them being 1 mm thick (sandwich design).

Technical Parameters:
