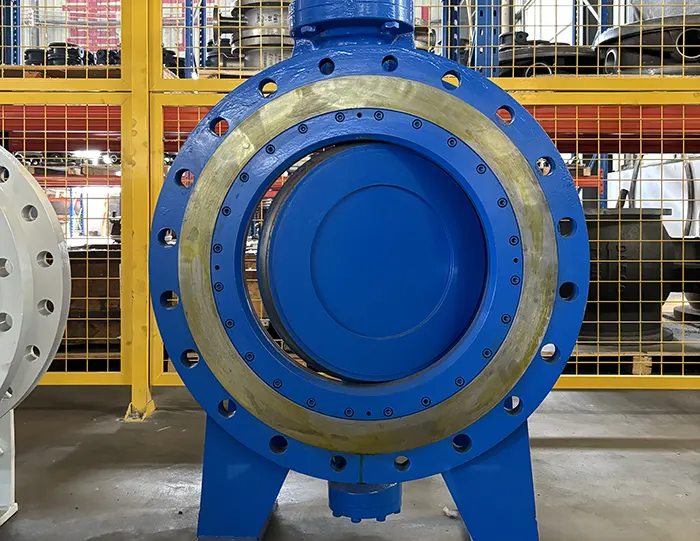

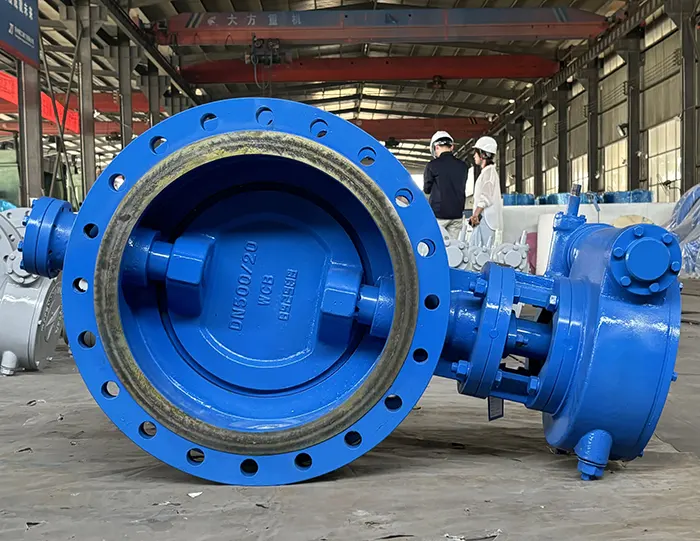

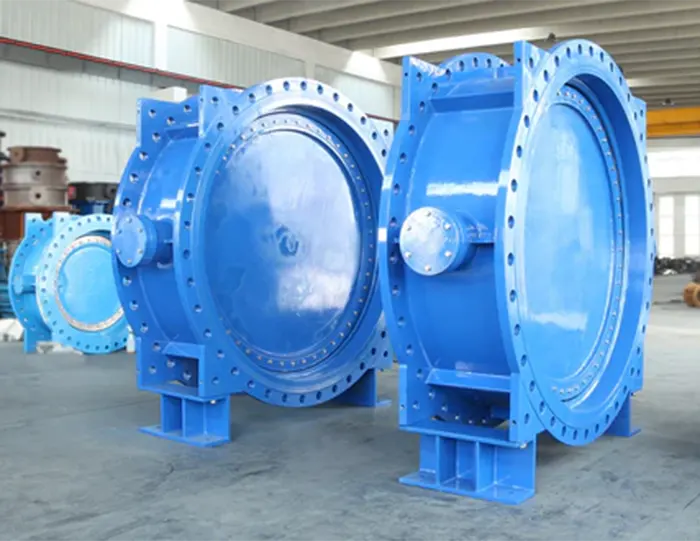

Seawater Butterfly Valve

  • Size RangeDN50~3000mm NPS2"~200"
  • PressurePN0.6~4.0MPa Class150/Class300
  • Body MaterialDuctile Iron, WCB, LCB, CF8, CF8M, CF3, CF3M, A890 4A, etc.
  • OperationManual, Worm Gear, Hydraulic, Electric, Pneumatic
  • Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB
  • More than 40 years professional valve manufacturer.
  • Products are exported to more than 72 countries.
  • Products are widely used in petroleum, chemical industry, metallurgy, electric power, water supply, coal gas, natural gas and other industries.
  • High reliability, excellent quality, fast service, online support
inquiry WhatsApp Email Download

Main Features:

1. Bidirectional Seal: Capable of sealing both forward and reverse media pressures, suitable for complex operating conditions.

2. Corrosion Resistance: The core component material combination withstands long-term erosion from corrosive media like seawater.

3. Long Life: Optimized butterfly disc design and wear-resistant coating extend valve life.

4. Offshore Engineering: Suitable for highly corrosive environments such as nuclear power plant seawater cooling and offshore platforms.

5. Chemical Industry: Suitable for handling acidic and alkaline media, oil product transportation, and other applications.

6. Supports multiple drive modes, including worm gear, electric, pneumatic, and hydraulic, facilitating remote control and automation integration.

Technical Parameters:

Seawater Butterfly Valve Dimensions
Seawater Butterfly Valve Dimensions
DN L H1 E H
Worm gear Pneumatic Electric Worm gear Pneumatic Electric
100 127 150 200 355 255 420 675 600
125 140 170 200 355 255 460 715 640
150 140 210 280 355 315 550 800 705
200 152 245 425 250 315 760 850 775
250 165 276 425 250 315 830 925 945
300 178 280 560 450 315 895 1035 1070
350 190 325 560 450 315 950 1070 1140
400 216 345 580 450 315 1190 1190 1210
450 222 390 580 650 714 1255 1250 1335
500 229 442 580 650 714 1305 1290 1415
600 267 505 660 850 810 1340 1455 1605
700 292 550 550 850 810 1520 1585 1844
800 318 605 550 1250 810 1710 1700 2040
900 330 665 550 1250 863 1810 1965 2255
1000 410 710 750 1250 863 1960 2015 2380
1200 470 835 925 12S0 863 2250 250 2640
1400 530 935 925 1250 1055 2434 2550 2866
1600 600 1060 925 1250 1055 2780 2750 3156
1800 670 1175 980 1250 1183 3020 2950 3421
2000 760 1265 980 1500 1286 3270 3350 3685
Seawater Butterfly Valve Dimensions
Seawater Butterfly Valve Dimensions
Dimensions L H1 H
DN NPS PN6/PN10/PN16/PN25/PN40 CLass 150/CLass 300 Worm gear Pneumatic Electric
100 4 190 120 376 630 555
125 5 200 130 386 640 565
150 6 210 140 452 696 602
200 8 230 180 530 740 650
250 10 250 230 620 790 740
300 12 270 240 698 838 850
350 14 290 270 778 900 970
400 16 310 300 846 930 1010
450 18 330 340 1005 998 1082
500 20 350 360 1058 1045 1175
600 24 390 410 1195 1235 1410
700 28 430 510 1308 1390 1650
800 32 470 560 1505 1500 1830
900 36 510 620 1650 1810 2240
1000 40 550 670 1718 1860 2320
1200 48 630 780 2015 - 2406
1400 56 710 880 2265 - 2660
1600 64 790 1020 2547 - 2895
DQ342H-2.5/6/10/16 Flanged Telescopic Seawater Butterfly Valve Dimensions
DQ342H-2.5/6/10/16 Flanged Telescopic Seawater Butterfly Valve Dimensions
DN L Expansion △L HI H2 H3 A1 A2 Φ 0.25MPa 0.6MPa 1.0MPa 1.6MPa
D1 n-d D1 n-d D1 n-d D1 n-d
50 150 ±10 82.5 150 66 135 42 150 110 4-Φ14 110 4-Φ14 125 4-Φ19 125 4-Φ19
65 170 ±10 92.5 165 66 135 42 150 130 4-Φ14 130 4-Φ14 145 4-Φ19 145 4-Φ19
80 180 ±10 100 170 66 135 42 150 150 4-Φ19 150 4-Φ19 160 8-Φ19 160 8-Φ19
100 190 ±10 125 195 11 135 42 180 170 4-Φ19 170 4-Φ19 180 8-Φ19 180 8-Φ19
125 200 ±10 142 220 77 135 42 180 200 8-Φ19 200 8-Φ19 210 8-Φ19 210 8-Φ19
150 210 ±10 160 250 77 135 42 320 225 8-Φ19 225 8-Φ19 240 8-Φ23 240 8-Φ23
200 230 ±12 190 275 107 202 60 320 280 8-Φ19 280 8-Φ19 295 8-Φ23 295 12-Φ23
250 250 ±12 220 305 107 202 60 320 335 12-Φ19 335 12-Φ19 350 12-Φ23 355 12-Φ28
300 270 ±15 245 350 126 220 93 320 395 12-Φ23 395 12-Φ23 400 12-Φ23 410 12-Φ28
350 290 ±15 278 385 126 220 93 320 445 12-Φ23 445 12-Φ23 460 16-Φ23 470 16-Φ28
400 310 ±15 305 435 157 287 123 400 495 16-Φ23 495 16-Φ23 515 16-Φ28 525 16-Φ31
450 330 ±15 346 490 157 287 123 400 550 16-Φ23 550 15-Φ23 565 20-Φ28 585 20-Φ31
500 350 ±20 375 505 165 360 184 390 600 20-Φ23 600 20-Φ23 620 20-Φ28 650 20-Φ34
600 390 ±20 425 605 165 360 184 390 705 20-Φ26 705 20-Φ26 725 20-Φ31 770 20-Φ37
700 430 ±20 495 675 195 410 204 500 810 24-Φ26 810 2-Φ26 840 24-Φ31 840 24-Φ37
800 470 ±30 560 740 195 410 204 500 920 24-Φ31 920 24-Φ31 950 24-Φ34 950 24-Φ40
900 510 ±30 625 805 235 521 217 500 1020 24-Φ31 1020 24-Φ31 1050 28-Φ34 1050 28-Φ40
1000 550 ±30 680 865 235 521 217 500 1120 28-Φ31 1120 28-Φ31 1160 28-Φ37 1170 28-Φ43
1200 630 ±35 800 1065 251 501 290 630 1320 32-Φ31 1340 32-Φ34 1380 32-Φ40 1390 32-Φ49
1400 710 ±35 920 1207 343 656 312 800 1520 36-Φ31 1560 36-Φ37 1590 36-Φ43 1590 36-Φ49
1600 790 ±40 1030 1317 370 750 414 800 1730 40-Φ31 1760 40-Φ37 1820 40-Φ49 1820 40-Φ56
1800 870 ±40 1245 1457 470 800 440 900 1930 44-Φ31 1970 44-Φ40 2020 44-Φ48 2020 44-Φ56
2000 950 ±50 1290 1625 470 800 440 900 2130 48-Φ30 2180 48-Φ43 2230 48-Φ48 2230 48-Φ62
2200 1000 ±50 1450 1740 470 800 440 900 2340 52-Φ33 2390 52-Φ43 2440 52-Φ56 2440 52-Φ62
2400 1100 ±50 1675 1875 480 990 595 1000 2540 56-Φ33 2600 56-Φ43 2650 56-Φ56 2650 56-Φ62
2600 1200 ±50 1745 2010 480 990 595 1000 2740 60-Φ33 2810 60-Φ48 2850 60-Φ55 2850 60-d62
2800 1300 ±50 1818 2100 480 990 595 1000 2950 64-Φ36 3020 64-Φ48 3070 64-Φ56 3070 64-Φ70
3000 1400 ±50 1910 2200 480 990 595 1000 3160 68-Φ36 3220 68-Φ48 3290 68-Φ62 3300 68-Φ70
